SCOOVO X9H: Marlin 3D Printer Firmware

SCOOVO X9H: SCV-X9H-S / SCV-X9H-BK

2025-05-01:

Download Visual Studio Code 1.99.3 > Extensions Platform IO > Click the Platform IO icon of a bugs head on the left > Create New Project > Quick Access > New Project > Project Wizard > Name: Scoovo > Board: RepRap RAMBo > Framework: Arduino

Add #define SDSUPPORT to the beginning of Configuration_adv.h

16×4 HITACHI_HD44780_H

M503
SENDING:M503
echo:Steps per unit:
echo: M92 X71.48 Y71.65 Z1070.44 E97.29
echo:Maximum feedrates (mm/s):
echo: M203 X500.00 Y500.00 Z8.00 E50.00
echo:Maximum Acceleration (mm/s2):
echo: M201 X8000 Y4500 Z500 E10000
echo:Accelerations: P=printing, R=retract and T=travel
echo: M204 P3000.00 R3000.00 T3000.00
echo:Advanced variables: S=Min feedrate (mm/s), T=Min travel feedrate (mm/s), B=minimum segment time (ms), X=maximum XY jerk (mm/s), Z=maximum Z jerk (mm/s), E=maximum E jerk (mm/s)
echo: M205 S0.00 T0.00 B20000 X21.20 Z0.40 E5.00
echo:Home offset (mm):
echo: M206 X0.00 Y0.00 Z0.00

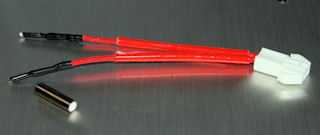

echo:Material heatup parameters:
echo: M145 M0 H180 B70 F0
echo: M145 M1 H240 B110 F0
echo:PID settings:
echo: M301 P18.13 I1.04 D78.87 C100.00 L20
echo:Filament settings: Disabled
echo: M200 D1.75
echo: M200 D0

Maybe my file was from Marlin 1.0.2 (https://github.com/MarlinFirmware/Marlin/issues/1259)
git checkout `git rev-list -n 1 –before=”2013-05-05 12:00″ Release` -b may_5_2013

Download the Original Marlin Firmware
Version 1.0.0 for the Scoovo X9H 3D Printer

I needed to use Arduino 1.0.5 or an older version to update the firmware, as later versions could not load the add-in needed to load the RAMBo board. Without this the LCD could not be loaded.

Note: Ardunio version 1.6.7 nightly build worked. I still had to load the RAMBo board driver/plug via the preferences popup though.

https://raw.githubusercontent.com/ultimachine/ArduinoAddons/master/package_ultimachine_index.json

The first link is a zipped version of the original setup files for the Scoovo X9H 3D printer. They are covered by a general public license (GPL).

Download latest tested and updated driver from https://github.com/a4jp-com/MarlinDev/

https://github.com/a4jp-com/MarlinDev/

Steps per millimeter – leadscrew driven systems

Result	1066.67
Leadscrew Pitch	3
Step Angle	1.8°
Stepping	1/16th
Gear Ratio	1 : 1

3mm leadscrew pitch
1066.67

Steps per millimeter – belt driven systems

Result	71.65
Resolution	13.95625 microns
Teeth	22
Step angle	1.8°
Stepping	1/16th
Belt	2.03mm

Example

M92 g-code can set the steps per mm in real time. Here is an example with your result for X axis.

M92 X71.65

Optimal layer height for your Z axis

3mm / 200 = 0.015

Optimal layer height ★
In 0.015mm steps

Motor step angle
1.8° (200 per revolution)

Desired layer height
0.3mm

Leadscrew pitch
42mm sample distance / 14 ridges
42 ÷ 7 = 3
3mm/revolution

Layer height	0.285
Error over 10cm	0mm
Number of Steps	19
Step Length	0.015mm

Layer height	0.3
Error over 10cm	0mm
Number of Steps	20
Step Length	0.015mm

Layer height	0.315
Error over 10cm	0mm
Number of Steps	21
Step Length	0.015mm

0.285 – 0.3 – 0.315 etc

UltiMachine RAMBo Rev. 1.3L

This is RAMBo v1.3L. The RAMBo board is an all in one 3D printer motherboard. It is a full remix of our RAMPS design with the Arduino MEGA and stepper drivers all on one integrated PCB. That is where it got the name RAMBo – (R)epRap (A)rduino-(M)ega-compatible (M)other (Bo)ard.

Major Features – 5 x integrated 1/16th microstep motor drivers, 5 PWM Mosfet outputs, 4 thermistor inputs, digital trimpot (no tiny knobs to tweak), SMPS supports hostless printing on power supply voltages from 10-24V DC, 3 independent fuse protected power rails, LUFA USB, high quality connectors, did I say hacker friendly …

RAMBo is designed to work with the current RAMPS generation firmwares with minimal modifications to add firmware control of the digital trimpots and the microstep setting pins.

Please choose above if you prefer to receive a RAMBo assembled circuit board only, or if you require the entire kit. The circuit board will arrive pre-assembled, with all electronic components securely soldered to the PCB, ready for use. In the kit, you will receive the endstop switches/wire harnesses of your choice, two thermistor wire harnesses, plug connectors, USB cable, & we throw in gold connectors/headers for use on the motors & possible extra fan.

RAMBo Kit Includes:

(1) Pre-Assembled RAMBo PCB
(2) Crimped/housed thermistor wire harness, 914.4mm (36″) *thermistor not included*
(1) 6-pin pluggable terminal block (black)
(5) 2-pin pluggable terminal block (black)
(1) 1×2 positive latch housing & matching gold connectors
(6) 1×4 positive latch housings & matching gold connectors for crimping motor cables
(1) USB Cable, 1.828m (6′)
(3) Choice of endstop switch (Mechanical, Optical)
(1) Matching endstop harness set (Mechanical, Optical), pre-crimped/housed, 609.6mm (24″)

Additional information and sources at RepRap.org/wiki/RAMBo. This board is Open Source Hardware licensed Creative Commons Attribution-ShareAlike 3.0.

Designed and assembled in USA by UltiMachine.

Firmware / Hardware Information –
Recommended Power supply 12V-28V DC, 16A+.

A preconfigured Marlin Firmware is preloaded onto the board. To re-flash this board, you can simply use the Arduino IDE and set board to “Arduino Mega 2560”. There is also a Arduino plugin folder on github that exposes additional pins in the Arduino IDE.

Linux and Mac use CDC interface and have hardware driver built in.
Windows hardware driver: RAMBo_USBdriver.zip

Version 1.1 and later use 1/16 microstep drivers. Previous versions were 1/8th.RAMBO V1.3 MANUAL – VIEW HERE

NOTE: If purchasing this board as a replacement for one received in another distributor’s printer kit, please “Add a note to your order” (“notes” located in shopping cart view) prior to checkout regarding your printer’s name/version/distributor details. The controller may require some adjustments for printer compatibility. Thank you!

TR14x3 Acme Lead Screw for the Z-axis

Nozzle diameter: 0.4mm + Filament diameter: 1.75mm

MXL cog 22 teeth

MXL Timing Belts – .080″ & 2.03 mm Pitch

B 76 MXL
pitch 6.08 inches, 154.432mm
76 teeth

B 295 MXL
6mm width
pitch 23.06 inches, 599.44mm
295 teeth

Check data here:
http://www.powertechno.co.jp/product/p_03_06.html

PDF Backup:

MXL･XLタイミングベルト-―株式会社パワーテクノ―Download

Server 1: http://www.sdp-si.com/D265/PDF/D265P1003.pdf

Server 2: https://a4jp.com/downloads/D265P1003.pdf

z-thread 14mm diameter (? 2mm pitch ?)

Stepper driver A4988

ShinanoKenshin Step Motor

Y Stepper Motor STA-42D3023

22 tooth cog

Distance = 22 * 2.03 = 44.66 mm
Steps per mm = 3200 / 44.66 ≈ 71.65 steps/mm

Move 100 mm with 71.65 steps/mm:
Steps = 100 * 71.65 = 7165 steps

With 71.649127:
Steps = 100 * 71.649127 = 7164.9127 ≈ 7165 steps
No difference in steps, showing 2 decimal places are often sufficient.

X/Y: 71.65 (microstep resolution ~14 µm).
Z: 1066.67 (microstep resolution ~0.94 µm).
E0: 100.64 (extrusion precision ~10–20 µm).

ShinanoKenshin Step Motor

Step Angle 1.8 degrees
Resistance / phase: 2.6 Ohms

1.8°/STEP 2.6Ω
STA-42D3023 (Fake number to hide real details of the motor by Shinano Kenshin)

Maybe this is the real model number SST45D012X
2 Phase Hybrid Stepping Motor 45D SERIES 42mm (NEMA17) High Holding Torque Model Unipolar
1.8 deg. step angle
3.1V
1.2A/theata
2.6 Ohms
1.8mH/theata
237mN-m
45g-cm2
6 pins
200g
32mm

4.2″ diameter stepper motor with a flange is a NEMA 42D

VITEK DISPLAY VC1641-KBW-JA Scoovo X9H / SCV-X9H-S: Marlin 3D Printer

VITEK DISPLAY VC1641-KBW-JA QC09 OK 140730-60

https://www.vitek.com.tw/character-module-pages-2-0.htm

16×4

VC1641

87.0 x 60.0

62.0 x 26.0

0.55 x 0.55

ST7066U

VC1641

Controller: ST7066U or KS0066 / HD44780 compatible? #define LCD_TYPE_HD44780

16×4 Character LCD, 16×4 LCD Display

1.5×8 dots with cursor
2.Built-in controller KS0066 or equivalent
3.+ 5V single power supply (option: +3V)
4.1/16 duty cycle
5.LED B/L pins: A/K, or 1/2, 15/16
6.Backlight: LED B/L
7.Option: Negative Voltage

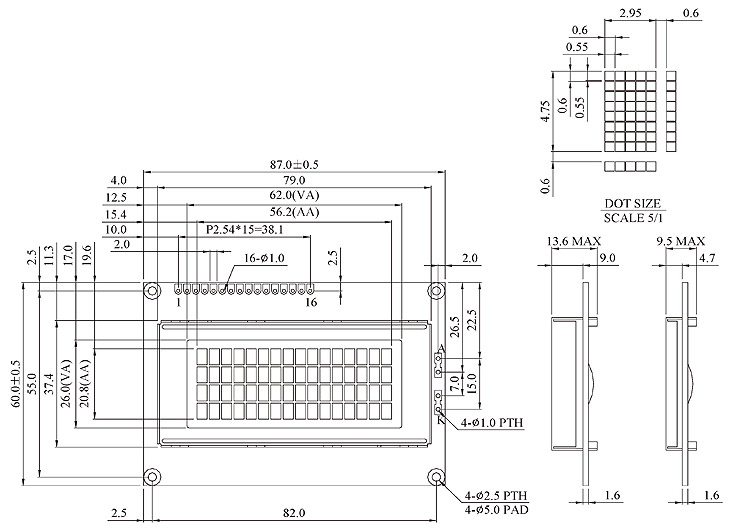

Mechanical Data

Item	Standard Value	Unit
Module Dimension	87.0 x 60.0	mm
Viewing Area	62.0 x 26.0	mm
Active Area	56.2 x 20.8	mm
Dot Size	0.55 x 0.55	mm
Character Size	2.95 x 4.75	mm

Electronic Characteristics

Item	Symbol	Condition	Typical Value	Unit
Input Voltage	V_DD	25 ℃	5.0	V
Supply Current	I_DD	V_DD = +5V	1.5	mA
LCD Driving Voltage	V_DD – V_O	25 ℃	4.5	V
LED Forward Voltage	Vf	25 ℃	4.2	V
LED Forward Current	If	25 ℃	220	mA

Pin Assignment

Pin	Symbol	Function
1	V_SS	GND
2	V_DD	+5V(+3V option)
3	V_O	Contrast Adjustment
4	RS	H:Data L:Instruction
5	R/W	H/L read/write signal
6	E	H→L enable signal
7~14	DB0~DB7	H/L data bus line
15	A	Power supply for B/L (+)
16	K	Power supply for B/L (-)

Display Address (DDRAM)

1	2	3	4	5	6	7	8	9	10	11	12	13	14	15	16
00	01	02	03	04	05	06	07	08	09	0A	0B	0C	0D	0E	0F
40	41	42	43	44	45	46	47	48	49	4A	4B	4C	4D	4E	4F
10	11	12	13	14	15	16	17	18	19	1A	1B	1C	1D	1E	1F
50	51	52	53	54	55	56	57	58	59	5A	5B	5C	5D	5E	5F
